Wire

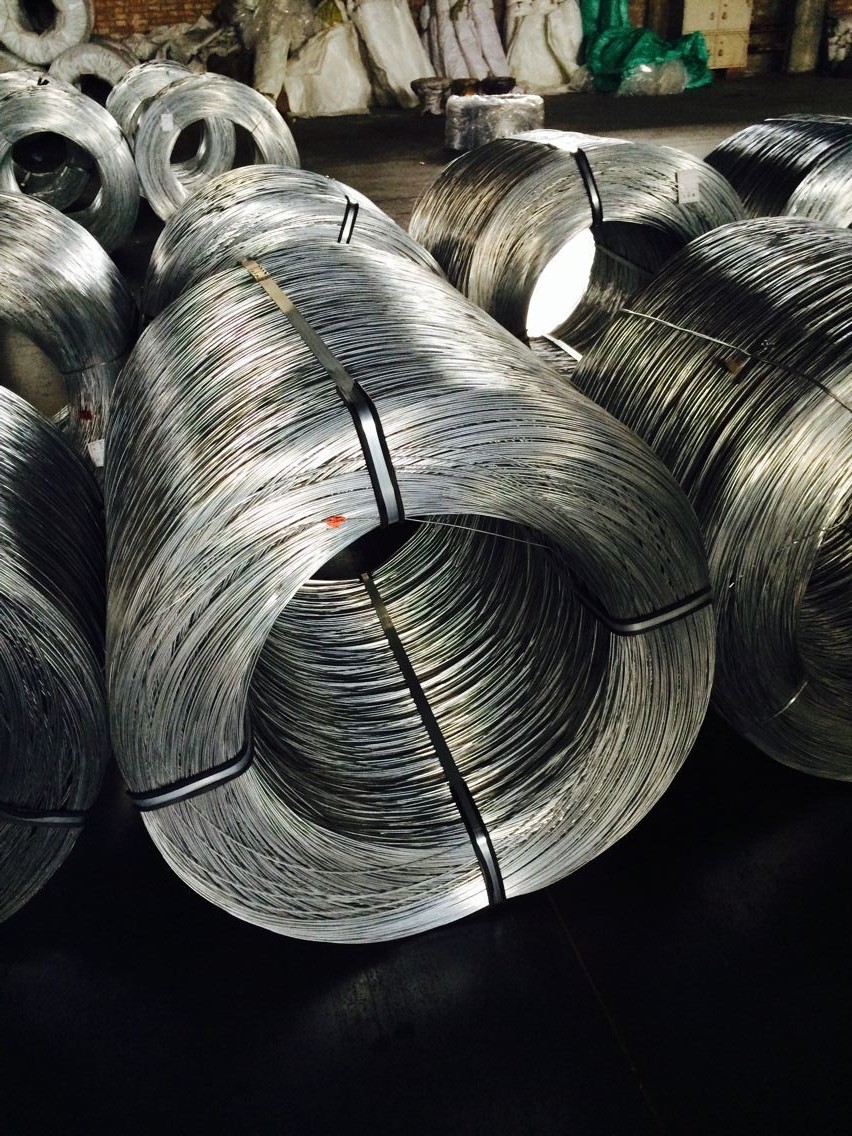

Hot dip galvanized iron wire
It’s made with choice low carbon steel wire, through wire drawing,acid washing and rust removing, annealing and coiling.
Its mainly used in construction, handicrafts, woven wire mesh,express way fencing mesh, packaging of products and other daily uses.
Size range: BWG 8-BWG 22
Zinc coat: 45-260g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
Electro galvanized iron wire
Electro galvanized iron wire is made with choice mild steel, through wire drawing, wire galvanizing and other processes. Electro galvanized iron wire has the characteristics of thick zinc coating, good corrosion resistance, firm zinc coating, etc. It’s mainly used in construction, express way fencing, binding of flowers and wire mesh weaving.
Size range: BWG 8-BWG 22
Zinc coat: 10-18g/m2
Tensile strength: 350-550N/mm2
Elongation: 10%
|
Galvanized Iron Wire Specification |
|||
|
Wire Gauge |
SWG(mm) |
BWG(mm) |
Metric(mm) |
|
8 |
4.05 |
4.19 |
4.00 |
|
9 |
3.66 |
3.76 |
4.00 |
|
10 |
3.25 |
3.40 |
3.50 |
|
11 |
2.95 |
3.05 |
3.00 |
|
12 |
2.64 |
2.77 |
2.80 |
|
13 |
2.34 |
2.41 |
2.50 |
|
14 |
2.03 |
2.11 |
2.50 |
|
15 |
1.83 |
1.83 |
1.80 |
|
16 |
1.63 |
1.65 |
1.65 |
|
17 |
1.42 |
1.47 |
1.40 |
|
18 |
1.22 |
1.25 |
1.20 |
|
19 |
1.02 |
1.07 |
1.00 |
|
20 |
0.91 |
0.84 |
0.90 |
|
21 |
0.81 |
0.81 |
0.80 |
|
22 |
0.71 |
0.71 |
0.70 |
Black Annealed Wire：Black annealed wire is mainly used as industrial wire, construction wire, industrial bale tie wire and constructional tie wire etc.
|
Black Annealed Wire Specification |
|||
|
Wire Gauge |
SWG(mm) |
BWG(mm) |
Metric(mm) |
|
8 |
4.05 |
4.19 |
4.00 |
|
9 |
3.66 |
3.76 |
4.00 |
|
10 |
3.25 |
3.40 |
3.50 |
|
11 |
2.95 |
3.05 |
3.00 |
|
12 |
2.64 |
2.77 |
2.80 |
|
13 |
2.34 |
2.41 |
2.50 |
|
14 |
2.03 |
2.11 |
2.50 |
|
15 |
1.83 |
1.83 |
1.80 |
|
16 |
1.63 |
1.65 |
1.65 |
|
17 |
1.42 |
1.47 |
1.40 |
|
18 |
1.22 |
1.25 |
1.20 |
|
19 |
1.02 |
1.07 |
1.00 |
|
20 |
0.91 |
0.84 |
0.90 |
|
21 |
0.81 |
0.81 |
0.80 |
|
22 |
0.71 |
0.71 |
0.70 |
PVC Coated Wire：Through deep processing, the plastic and galvanized iron wire are firmly combined, with anti-aging, anti-corrosion, anti-cracking and other characteristics.
|
BWG |
Diameter |
After Coated |
Color |
| 8 | 4.05mm | 4.99mm |
As request |
| 10 | 3.25mm | 4.15mm | |
| 12 | 2.64mm | 3.20mm | |
| 14 | 2.03mm | 2.60mm | |
| 16 | 1.63mm | 2.00mm | |
| 18 | 1.22mm | 1.52mm | |
| 20 | 0.91mm | 1.20mm | |
| 22 | 0.71mm | 1.00mm | |
| 24 | 0.56mm | 0.86mm | |
| 26 | 0.46mm | 0.70mm | |
| 28 | 0.375mm | 0.68mm | |
| 30 | 0.315mm | 0.60mm | |
| 33 | 0.250mm | 0.50mm | |
| 35 | 0.210mm | 0.48mm |
Small Coil Wire: Small coil wire is metal wire after surface treatment, there is a large plate of silk into small coil wire, the weight of the small winding wire control in 1-2.2 kg or so, in the aerial operation is more convenient to carry.
